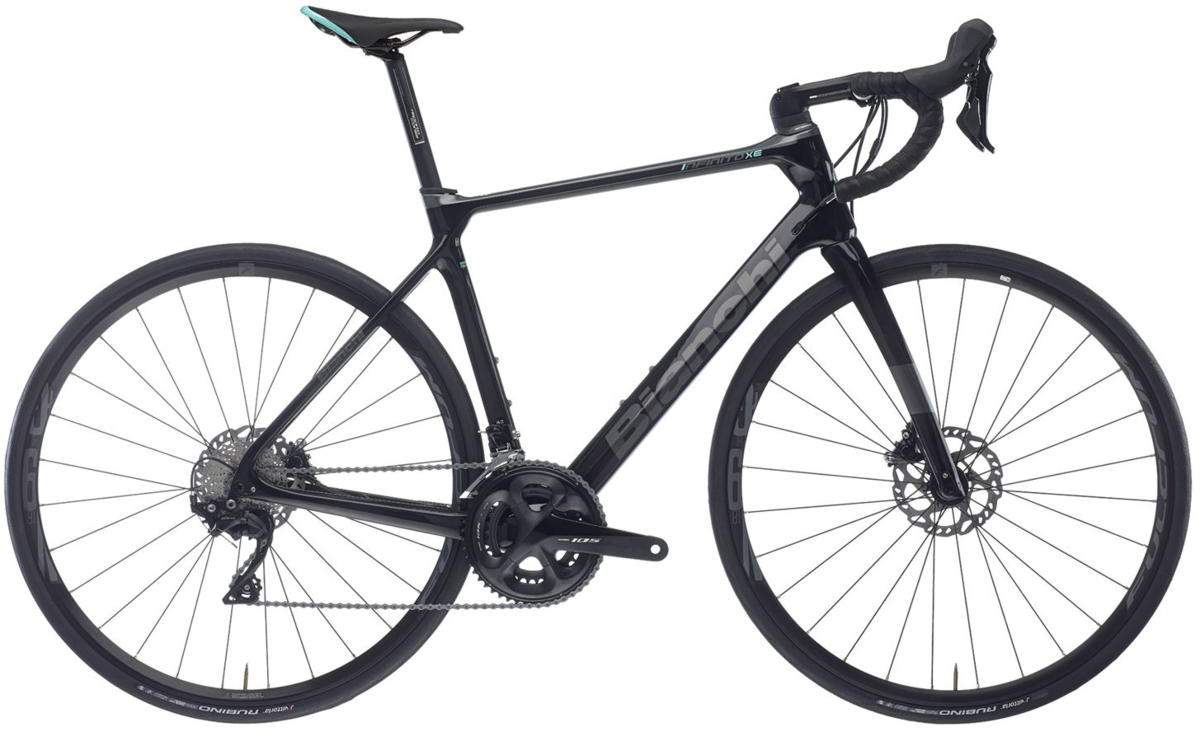

Bianchi Infinito XE Disc 105
$1,817.99
$3,029.99
Details
The Bianchi range of endurance bikes takes the cutting-edge technology used in our racing bikes and gives it a more comfortable geometry so you can put the miles in without compromising comfort.

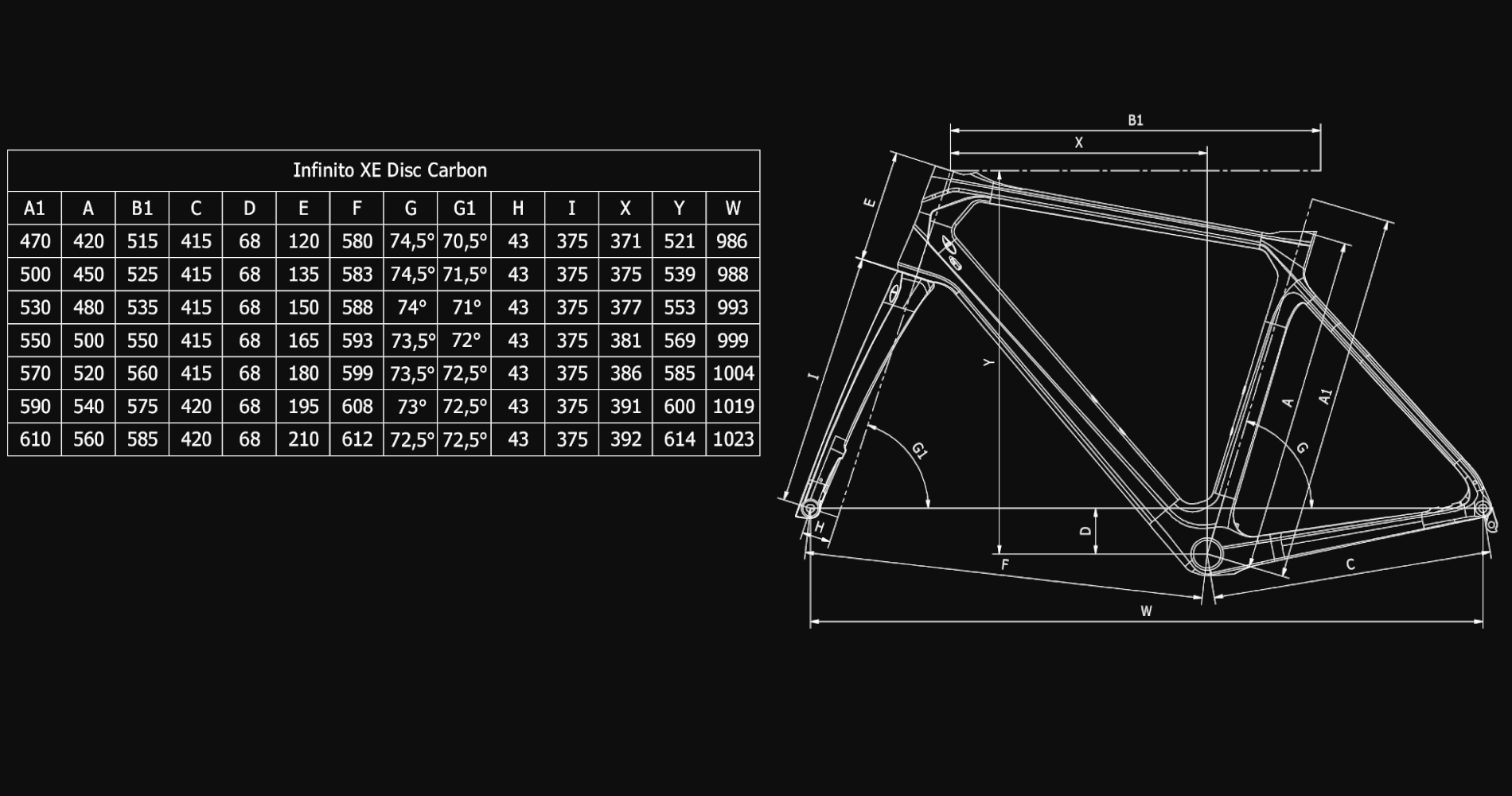

| Size | 47cm | 50cm | 53cm | 55cm | 57cm | 59cm | 61cm |
|---|---|---|---|---|---|---|---|
| A (mm) | 420 | 450 | 480 | 500 | 520 | 540 | 560 |
| B1 (mm) | 515 | 525 | 535 | 550 | 560 | 575 | 585 |
| C (mm) | 415 | 415 | 415 | 415 | 415 | 420 | 420 |
| D (mm) | 68 | 68 | 68 | 68 | 68 | 68 | 68 |
| E (mm) | 120 | 135 | 150 | 165 | 180 | 195 | 210 |
| F (mm) | 581 | 583 | 588 | 593 | 599 | 608 | 612 |
| G | 74.5° | 74.5° | 74° | 73.5° | 73.5° | 73° | 72.5° |
| G1 | 70.5° | 71.5° | 71° | 72° | 72.5° | 72.5° | 72.5° |
| H (mm) | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
| I (mm) | 375 | 375 | 375 | 375 | 375 | 375 | 375 |
| X (mm) | 371 | 375 | 377 | 381 | 386 | 391 | 392 |
| Y (mm) | 521 | 539 | 553 | 569 | 585 | 600 | 614 |
| WB (mm) | 986 | 988 | 993 | 999 | 1004 | 1018 | 1023 |
Specs
| Frame | Infinito XE Disc carbon, tapered HT 1.1/8"- 1.5", Mechanical/Electronic Di2 shifting compatible, compatible with 32" tire, PressFit 86,5x41mm BBset, thru axle 12x142mm |
|---|---|
| Fork | Bianchi Full Carbon Disc, 1.5" head, thru axle 12x100mm, compatible with 32" tire |
| Rims | Fulcrum Racing 918 DB, 2WF-R C19, thru axle front 12x100mm - rear 12x142mm |
| Tires | Vittoria Zaffiro Pro V 700x28 |
| Bottom Bracket | Shimano SM-BB71-41B, PressFit |
| Crankset | Shimano 105 FC-R7000 50x34T, Hollowtech II |
| Shifters | Shimano 105 ST-R7020 2x11sp, Hydraulic disc brake, Shimano 105 ST-R7025 2x11sp smaller lever size for sizes 47-50-53cm |
| Front Derailleur | Shimano 105 FD-R7000-L |
| Rear Derailleur | Shimano 105 RD-R7000 GS 11sp |
| Cassette/Freewheel | Shimano 105 CS-R7000, 11-12-13-14-16-18-20-22-25-28-32T |
| Chain | KMC X11-1 EPT finish, 11sp |
| Brakes | Shimano BR-RS505 |
| Rotors | Shimano SM-RT70, diam. 160mm |
| Brake Levers | Included w/shifters |
| Handlebars | Velomann Compact, Flat Top, alloy 6061 diam. 31,8mm, reach 80mm, drop 130mm |
| Tape/Grips | La Spirale Ribbon cork |
| Stem | Velomann, 3D Forged alloy 6061, rise +/ - 7°, height 38mm, Oversize, 1.1/8" |
| Headset | FSA NO.42/47CF/ACB/5D |
| Seatpost | Velomann alloy shaft 2014, head alloy 6061, hardwares: Steel, Setback 25mm |
| Saddle | Velomann 1966 rail steel black, open, cover PU, lenght/wide 250x148mm |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Black Gloss / 55cm | 08032809829263 | YRB7DT555H | 210000071247 |
